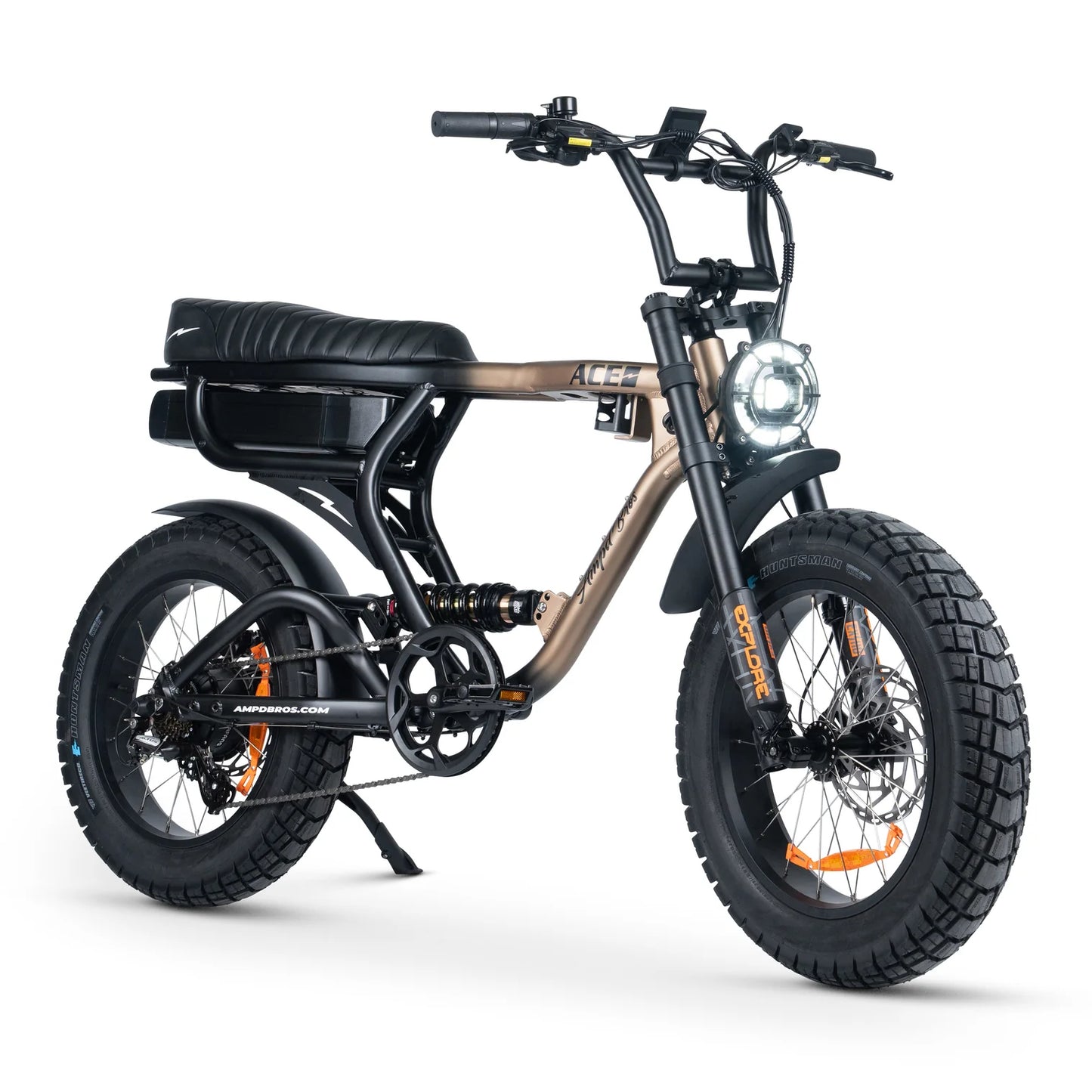

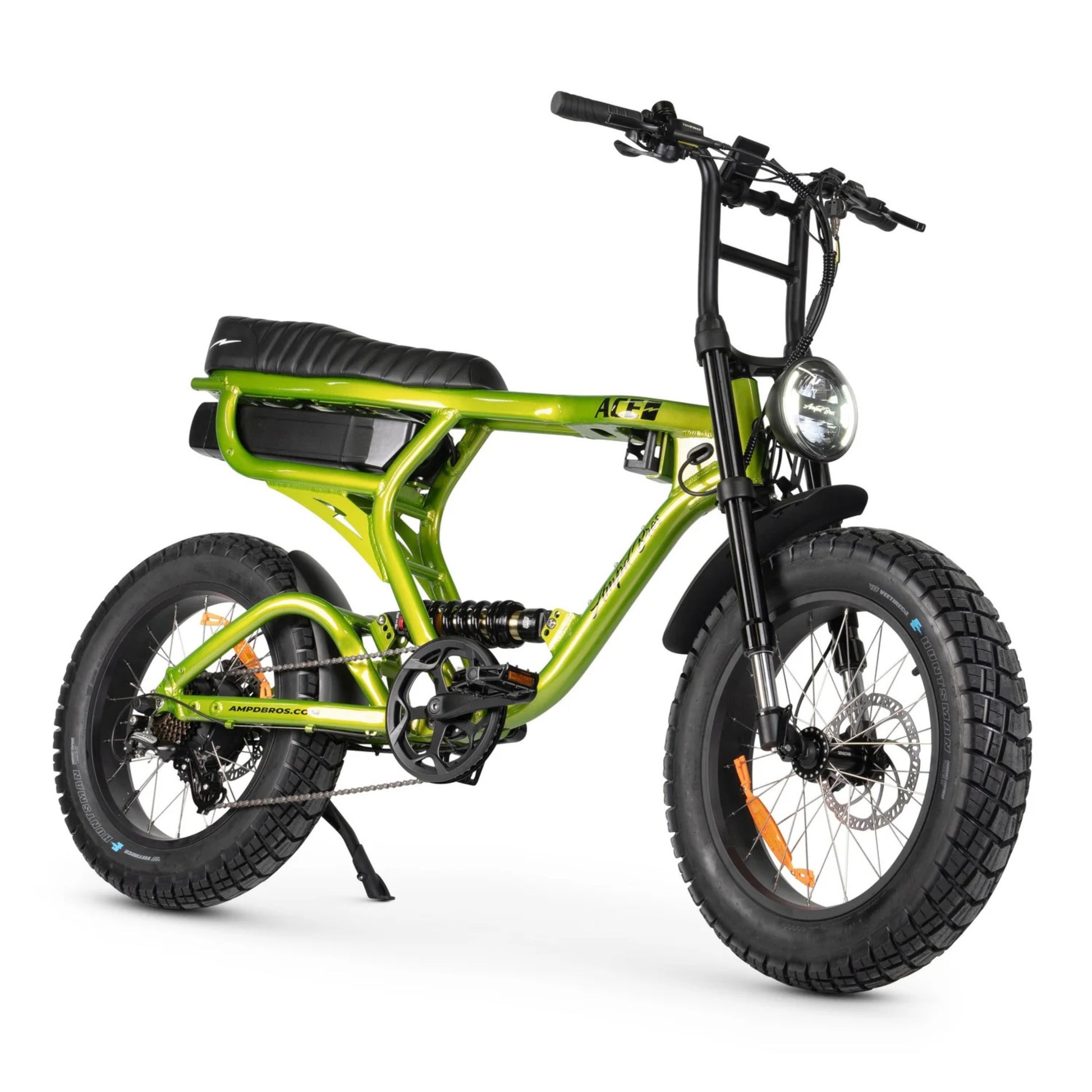

Ampd Bros ACE-X PRO Dual Suspension Electric Bike

Description

Hold on tight, because the All NEW S3 ACE-X PRO Dual Suspension Electric Bike is here to blow your mind! Inspired by our legendary ACE-X Model Range, the ACE-X PRO just took a quantum leap forward!

Say goodbye to the ordinary, because the ACE-X PRO leaves its predecessor, the ACE-X in the dust. We've supercharged it with a mind-boggling 1,000W Rear Hub Bafang Motor that delivers mind-blowing ride performance like never before seen on an Ace Bike! And for those seeking next-level comfort, we've added our signature DNM Rear Suspension for an ultra-smooth ride.

Designed in conjunction with our in-house family team and continuously sought after since its debut in 2019, the ACE Bike continues to create waves nationwide.

Loaded with premium features and celebrated year after year as Australia's favourite fat tyre bike the ACE Pro range boasts a vibrant colour options and a cutting-edge battery system with our Latest GEN3 Aluminium Battery which encompasses 21700 cells that are 30% larger than our competitors, paired with our Smart BMS for optimal performance and safety.

What's New for Series 3?

 NEW GEN3 Battery with Tail & Brake Lights
Increased Battery Capacity to 25AH
Updated 30% Larger Battery Cells to Premium Samsung 21700 Cells
Software Enhancements to Display Controls and Design
Revised Suspension Design to Enable 100mm of Seat Height Adjustment while also allowing integration of our new Optional Frame Cargo Basket
New Plush Quilted Seat and Improved Huntsman Puncture Resistant Tyres
Step up to the ACE-X PRO, our iconic high cross bar "X" frame model. Equipped with an adjustable coffee cup and bottle holder, a spacious seat for two, and a massive Removable Samsung Battery with a 100km Range, this beast will take you on unimaginable adventures. Paired with Bafang's High Torque 95Nm Motor, no terrain can hold you back – beaches, hills, dirt tracks, grass, or pavement, you name it!

Feel the surge of adrenaline as the insane levels of torque propel you forward, conquering every obstacle in your path. Pedal Assist is standard, but with our Off Road Throttle Kit, you can cruise effortlessly with minimal effort. Gear shifts are lightning-fast and precise, thanks to the 7-speed Shimano Rapid Fire trigger shifter and Altus transmission.

Specifications

ACE PRO & DEMON SERIES 3
Speed & Range
 Range 100km* (Single Motor Only)
 Top Speed 25km/h (or Unlock up to 50km/h for Private Property Use)
Battery
 Standard 48V / 1,200Wh, 25AH
 Samsung Premium 21700 Lithium cells
 Battery is removable and can be charged in bike or separately.
Ride Modes
 Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
 Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
 Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
 Hill Ability Up to 30º Degree / 60% Incline PAS

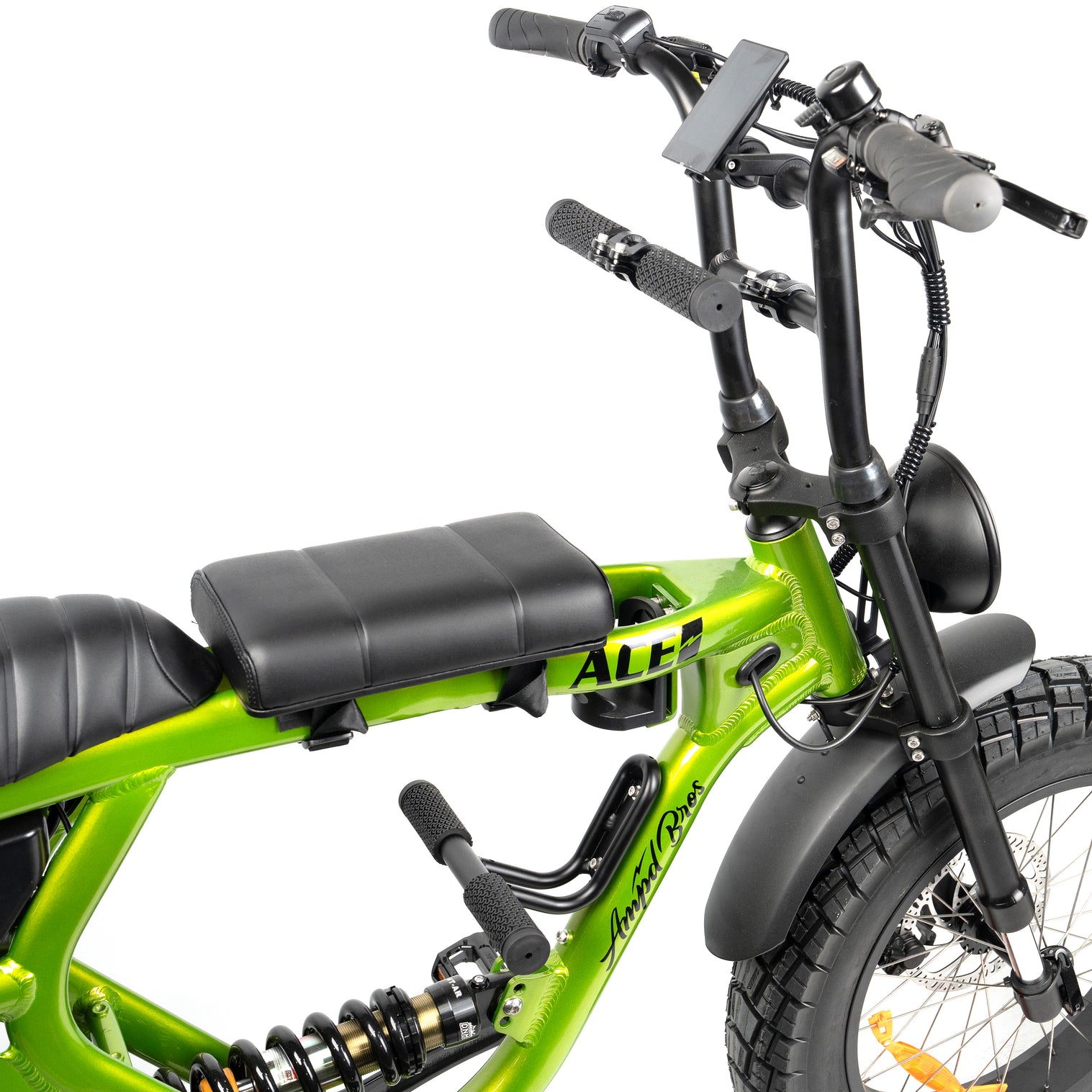

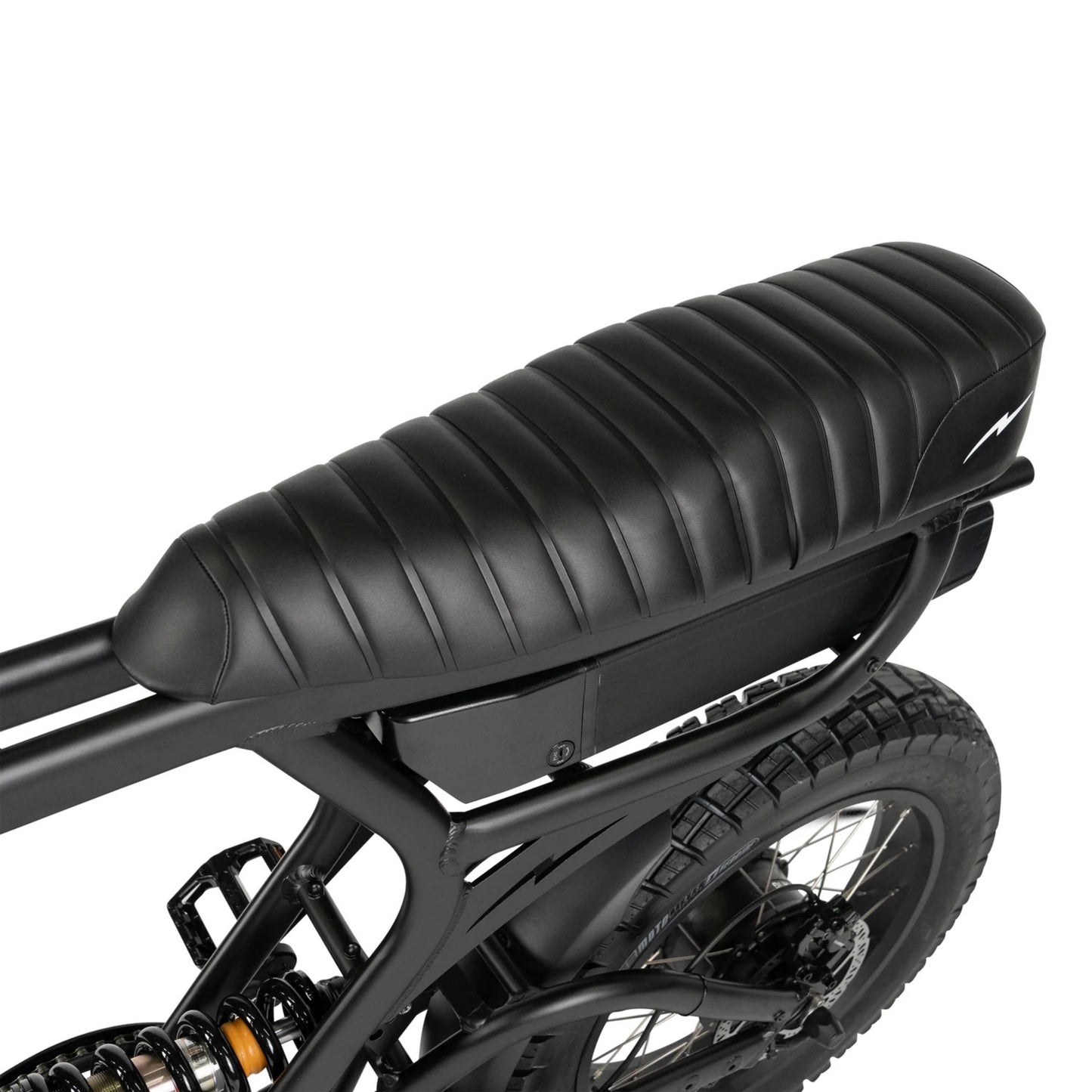

 Seat Custom Large Quilted Plush Dual Seat for 2 Riders
 Warranty 2 Years (1 Year on Batteries)
 Ace Pro Headlight Ampd Bros Signature 800lm LED Light with DRL
 Demon Headlight Upgraded PRO Front LED 1,700lm Headlight with DRL
 Lights Rear LED Brake Light inbuilt to battery pack
 Grips Velo Wide Comfort
 Bell Yes
Brakes
 Standard Tektro Hydraulic Disc
 Discs 180mm
 E-Brakes Yes Motor Safety Cut Off
Display
Colour LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc
Controller
Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
 Motor Type Bafang RMG 062D & 063D Latest Gen Hub Drive
 Ace Pro Motor Single Rear Limited to 250W (Unlocked 1,000W)
 Ace Demon Motors AWD Dual Drive Limited to 250W (Unlock to 1,000W Front & Rear - 2,000W Total)
 Ace Pro Torque High Torque 95n.m
 Ace Demon Torque High Torque 190n.m (Combined)
 Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
 Derailleur Shimano Altus
 Pedals Wellgo Alloy - Black
 Chain KMC Z Series High Performance

Construction
 Frame Aluminium - "X" Step Over Bar Design
 Handlebars Aluminium Motorcycle Inspired with Adjustable Height
 Fenders Matte Black Aluminium
Suspension
 Standard Front Independent & Rear Adjustable DNM
Wheels & Tyres
 20x4.0" Vee Tire Huntsman Puncture Resistant All Terrain Tyres
Charging
8.5hrs for 25Ah Batteries with Standard 3A Included Charger
Optional 5A Fast Charger Available
Dimensions
 Overall Length 1,800 mm
 Handlebar Height 1,140 - 1,190 mm
 Handlebar Width 660 mm
 Seat Height 880mm (Adjustable between 850-950mm)
 Seat Length 600 mm
 Ground Clearance 270 mm
 Wheel Base 1,160 mm
 Rider Height Ideal for Riders up to 200cm Tall
Weights
 N.W of 25Ah Battery 6.25 kg
N.W of ACE Pro + Battery 44.4 kg
N.W of ACE Demon + Battery 49 kg
Max Loading 180 kg
Inclusions
 In Box Bike, 48V Battery, 3A AUS Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
