Ampd Bros ACE-X MINI Fat Tyre Electric Bike

Ampd Bros ACE-X MINI Fat Tyre Electric Bike – Compact Power, Big Adventures

Meet the Ampd Bros ACE-X MINI Fat Tyre Electric Bike, the compact cruiser built for riders who want portability without sacrificing performance. Whether you’re zipping through city streets, exploring coastal paths, or cruising on weekend getaways, this bike combines modern design, agility, and serious power in a smaller frame.

Designed for Everyday Riders

The Ampd Bros ACE-X MINI Fat Tyre Electric Bike proves that size isn’t everything. Lightweight yet tough, it’s perfect for teens and adults looking for fun, freedom, and functionality. With its step-through frame, you’ll enjoy easy mounting, comfortable rides, and simple storage—ideal for apartments, caravans, and on-the-go lifestyles.

Power That Punches Above Its Size

Equipped with a High Torque Bafang Rear Hub Motor, the ACE-X MINI delivers speeds up to 25km/h (or 30km/h off-road private property). Powered by a 48V Samsung Lithium Battery, you’ll enjoy up to 40km of range on a single charge, making it a reliable choice for both commuting and leisure rides.

Ride with Confidence Anywhere

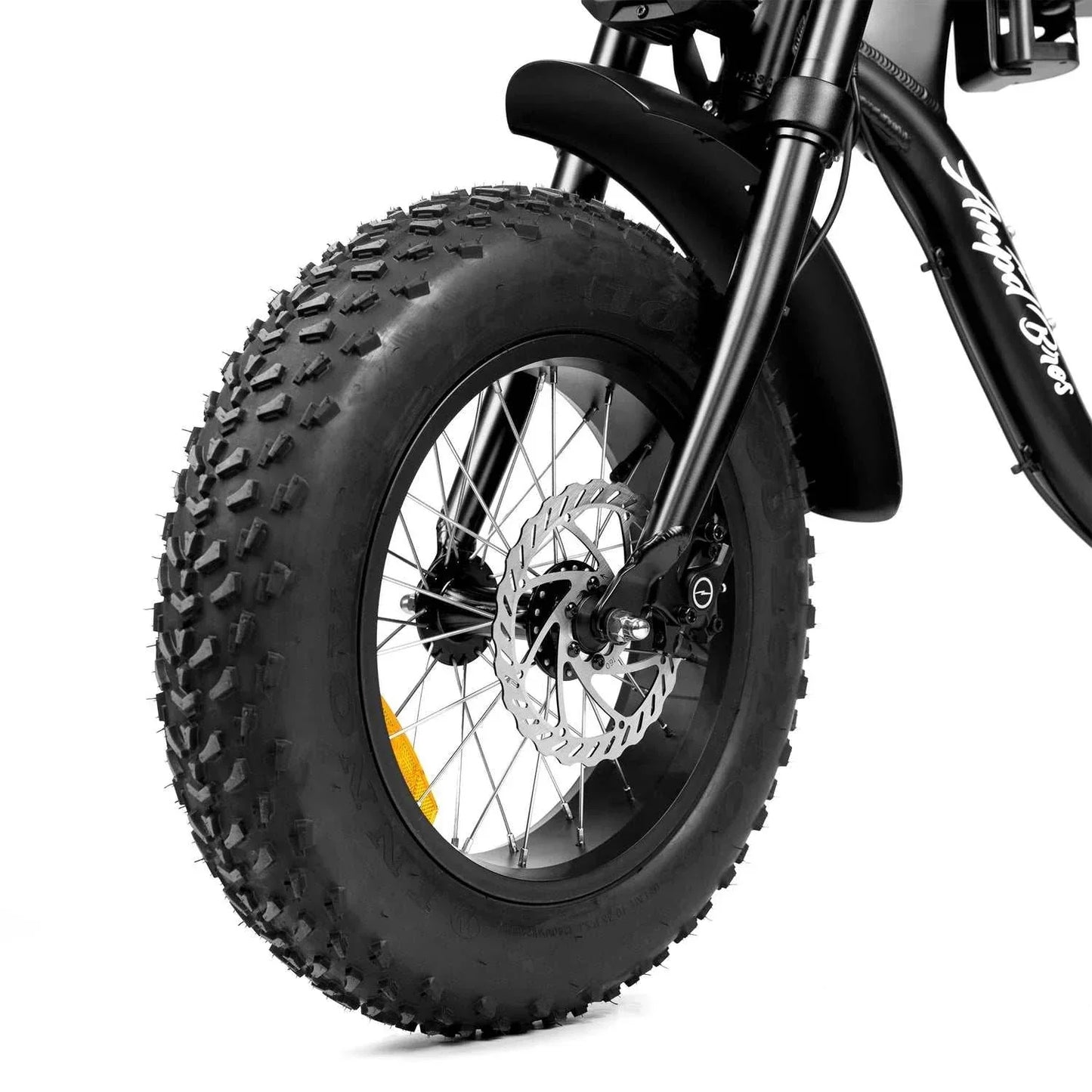

From beach tracks to bike paths, its chunky 16x4” fat tyres give superior grip and balance. Hydraulic disc brakes provide dependable stopping power, while the bright LED headlight and micro LCD display keep you safe and in control at all times.

Functional Features with Custom Style

Every bike includes a rear aluminium basket for your essentials. Need more seating? Swap it for an optional extended dual seat to bring along a passenger. This makes the ACE-X MINI as versatile as your lifestyle.

Your Everyday Adventure Buddy

Built with durability, comfort, and clean design in mind, the ACE-X MINI is your ticket to effortless, no-fuss freedom. Whether it’s a quick café run, beachside ride, or city commute—this bike is made to move with you.

⚠️ Reminder: Always check your local authority regulations on where and how e-bikes like the ACE-X MINI can be legally ridden.

ACE SERIES 4

Range

•  Ace Mini Models 40km+
•  Ace Standard Models 60km+
•  Ace Plus/Cargo Models 80km+

Top Speed (Off Road Private Property)

•  All Models Restricted to 25km/h
•  Ace Mini Up to 35km/h (When modified for Private Property Use)
•  Standard Up to 40km/h (When modified for Private Property Use)
•  Ace Plus/Cargo 45km/h (When modified for Private Property Use)

Battery

•  Ace Mini 48V / 480Wh, 10AH
•  Standard 52V / 780Wh, 15AH
•  Plus/Cargo 52V / 1,040Wh, 20AH
•  Samsung Premium 21700 Lithium cells
•  Battery is removable and can be charged in bike or separately.

Motor

•  All Models Bafang Rear Hub Restricted to 250W High Torque Motor
•  Ace Mini 500W / Peak 750W+ (When modified for Private Property Use)
•  ACE Standard 500W / Peak 750W+ (When modified for Private Property Use)
•  ACE Plus/Cargo  750W / Peak 1,000W+ (When modified for Private Property Use)

Ride Modes

•  Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
•  Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
•  Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit

Features

•  Hill Ability Up to 15º Degree / 25% Incline PAS
•  Seat Custom Large Black Dual Seat for 2 Riders
•  Warranty 2 Years (1 Year on Batteries)
•  Lights Front LED Headlight with DRL
•  Lights Rear LED Brake Light inbuilt to battery pack
•  Grips Black Velo Wide Comfort
•  Bell Yes

Brakes

•  Ace Mini Ampd Bros Hydraulic with 160mm Disc
•  Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
•  E-Brakes Yes Motor Safety Cut Off

Display

• Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc

Controller

• Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.

Drivetrain

•  Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
•  Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
•  Derailleur Shimano Altus
•  Pedals Wellgo Alloy - Black
•  Chain KMC Z Series High Performance & Rust Resistant

Construction

•  Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
•  Handlebars Aluminium Motorcycle Inspired with Adjustable Height
•  Fenders Matte Black Aluminium

Suspension

•  Mini & Standard Models No Suspension
•  Plus+ Models Front Custom Tuned Adjustable Fork
•  Cargo Models Front Independent Suspension Fork (Non Adjustable)

Wheels & Tyres

•  Ace Mini 16x.40" Innova Mud Tyres

Charging

• 5-6hrs 10Ah Batteries with Standard 2A Charger
• 7-8hrs 15Ah Batteries with Standard 2A Charger
• 9-10hrs 20Ah Batteries with Standard 3A Charger
• Optional 5A Fast Charger Available for 2.5x Faster Charging

Ace Mini Dimensions

•  Overall Length 1,470 mm
•  Handlebar Height 1040 mm
•  Handlebar Width 660 mm
•  Seat Height 770 mm Fixed Height
•  Seat Length 370 mm
•  Ground Clearance 190 mm
•  Wheel Base 990 mm
•  Rider Height Ideal for Riders up to 170cm Tall

Weights

•  N.W of 10Ah Battery 3.2kg
•  N.W of 15Ah Battery 4.34 kg
•  N.W of 20Ah Battery 5.12 kg
• N.W of Standard ACE + Battery 32.3 kg
•  N.W of ACE Plus+ Battery 36 kg
•  N.W of ACE Mini + Battery 29 kg
•  N.W of ACE Cargo + Battery 40.5 kg
• Max Loading 180 kg
• ACE Mini Max Loading 100 kg

Inclusions

•  In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.

*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.

People Also Ask

How long does the battery last on the ACE-X MINI?

The Samsung 48V 10AH battery provides up to 40km of range per charge, depending on rider weight, terrain, and riding style.

Can the ACE-X MINI handle off-road conditions?

Yes! With fat tyres and a powerful hub motor, it performs well on sand, gravel, and trails, but is best suited for light off-road adventures.

Is the ACE-X MINI suitable for both teens and adults?

Absolutely. Its step-through design and compact size make it easy to handle for younger riders, while still powerful enough for adults.

What comes included with the ACE-X MINI?

Every purchase includes the bike itself, a rear aluminium basket, LED headlight, LCD display, and charger. Optional accessories like the dual seat are available.
