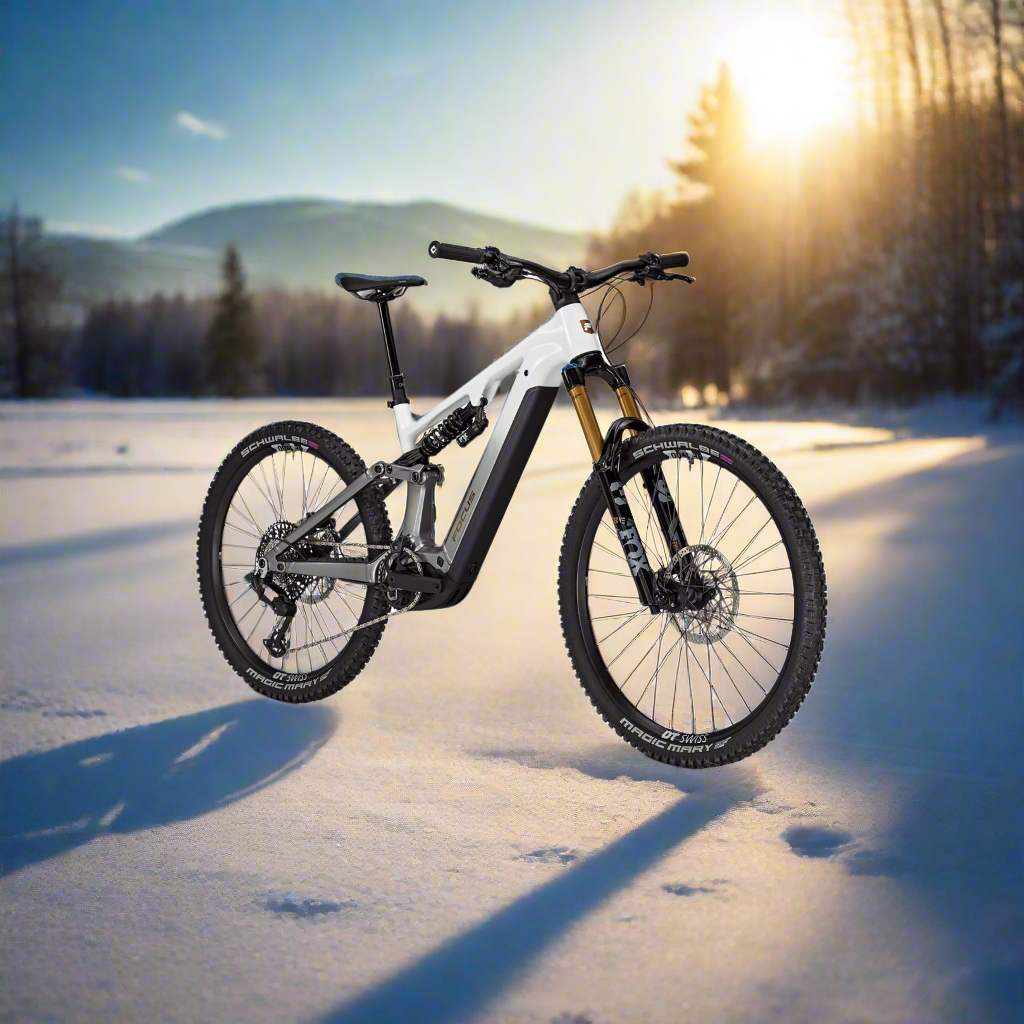

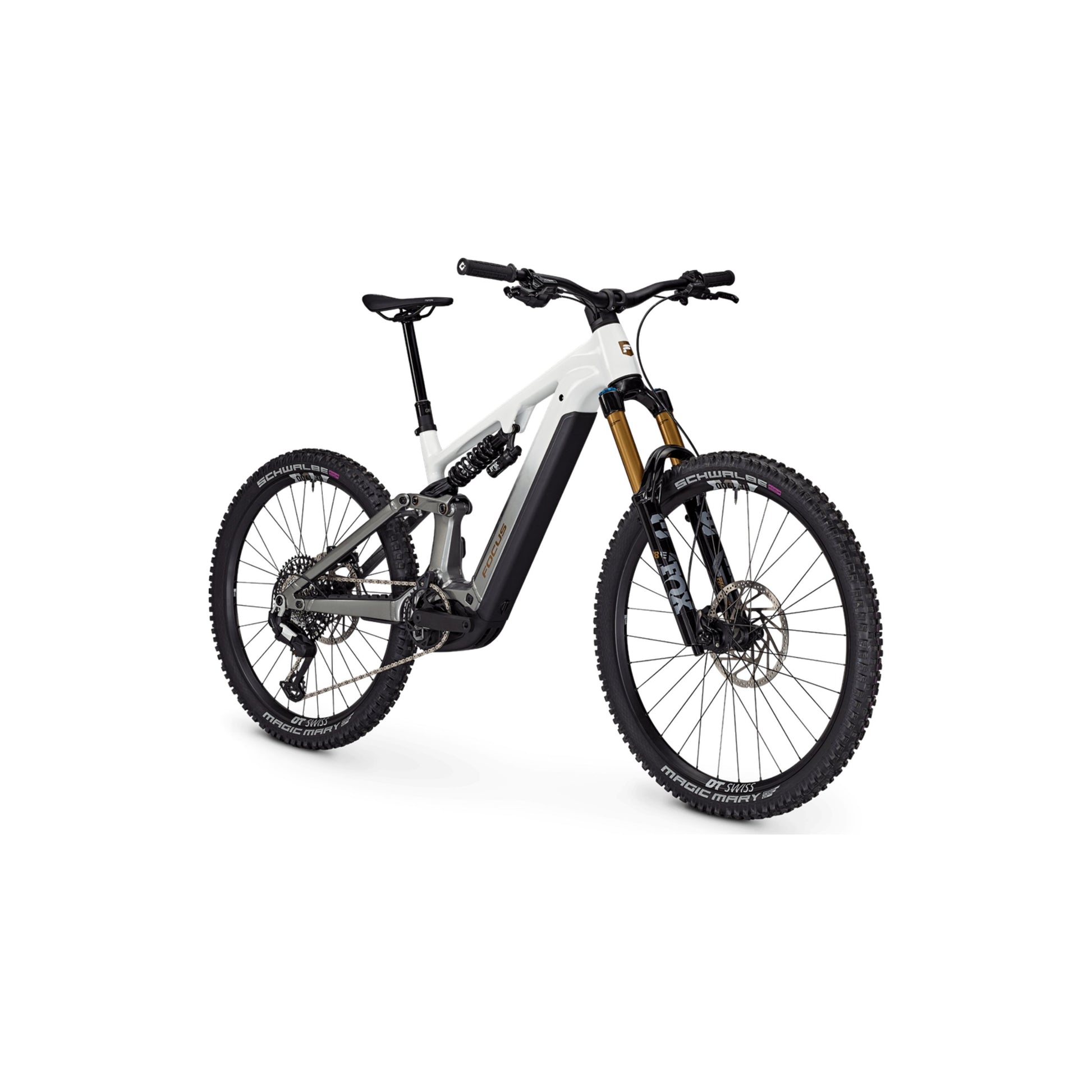

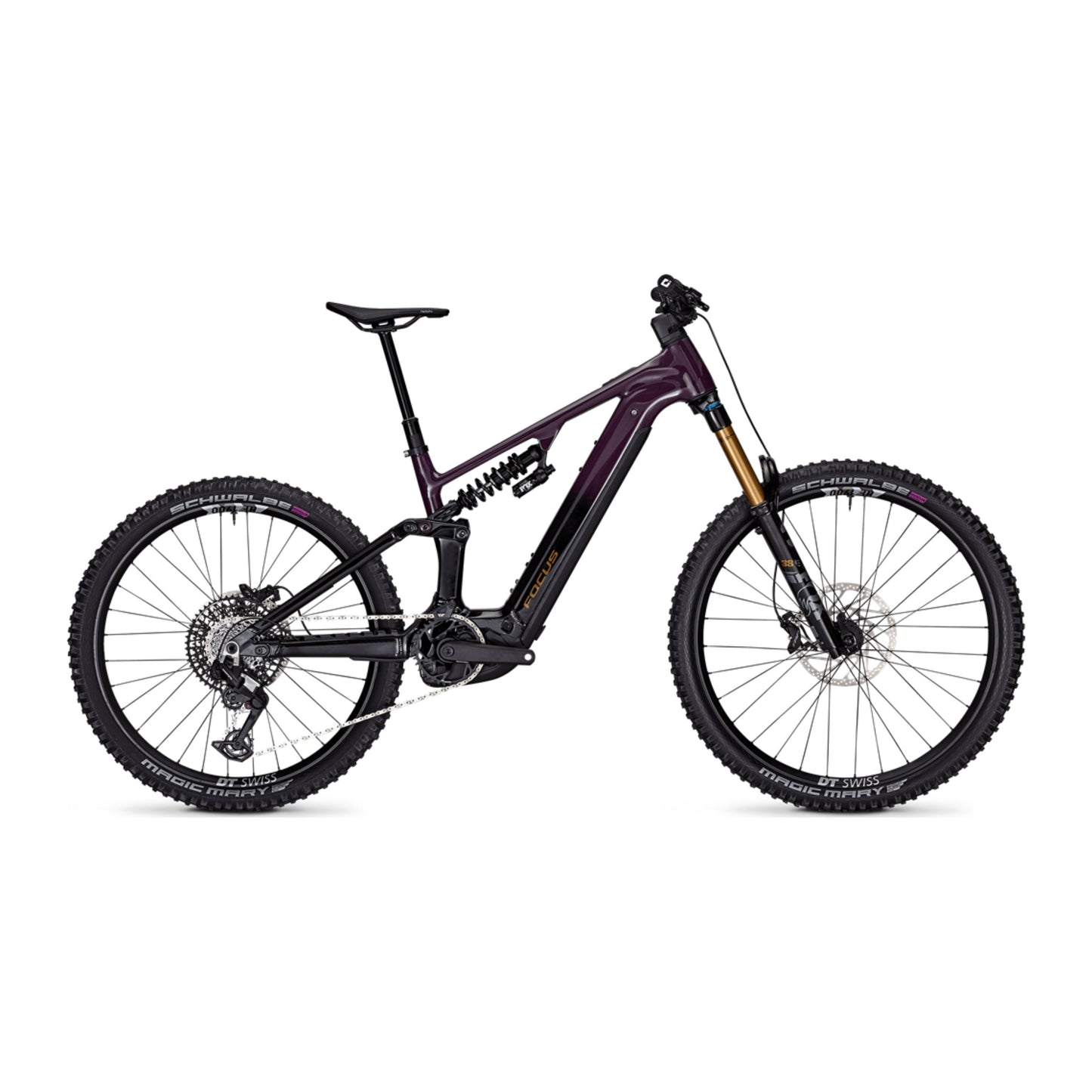

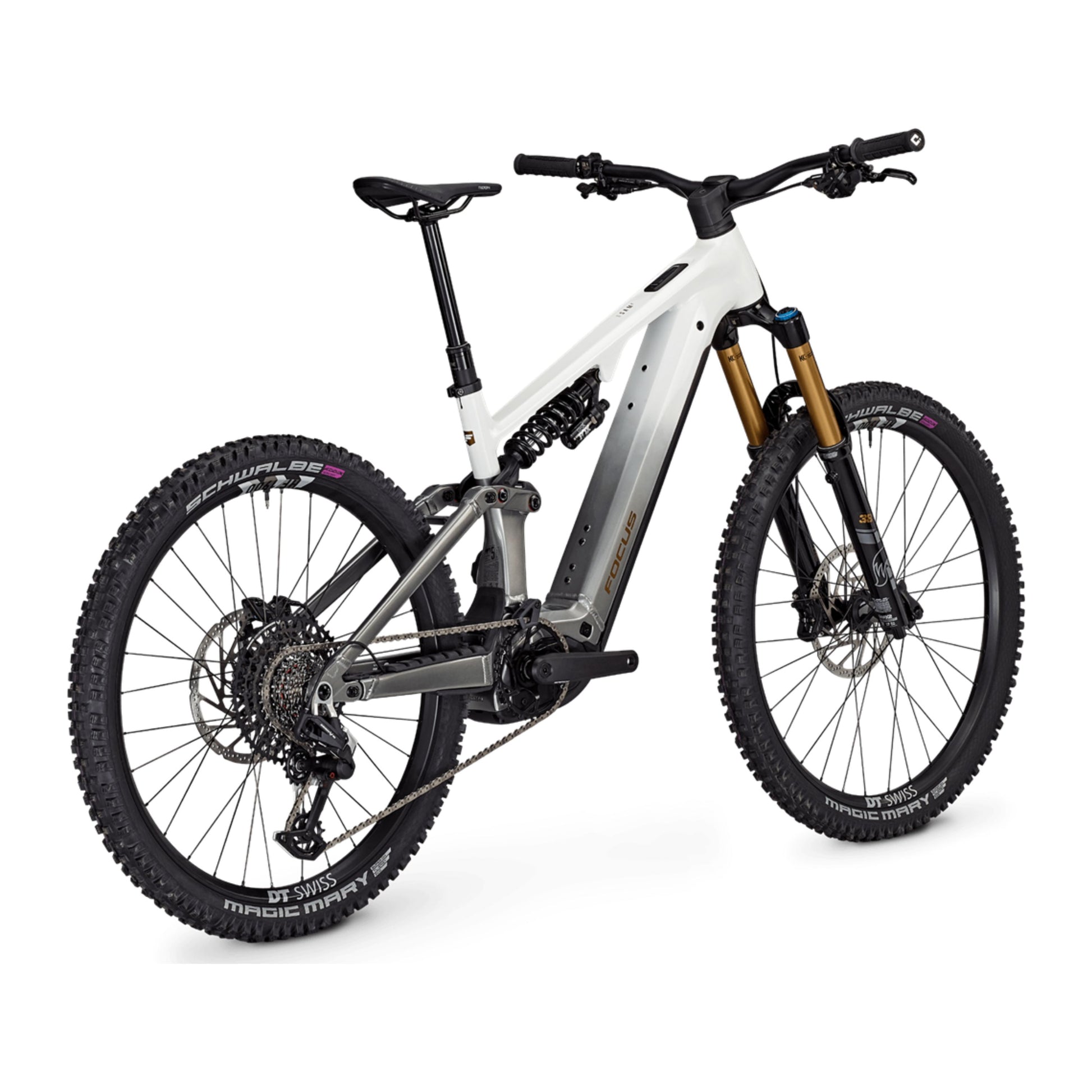

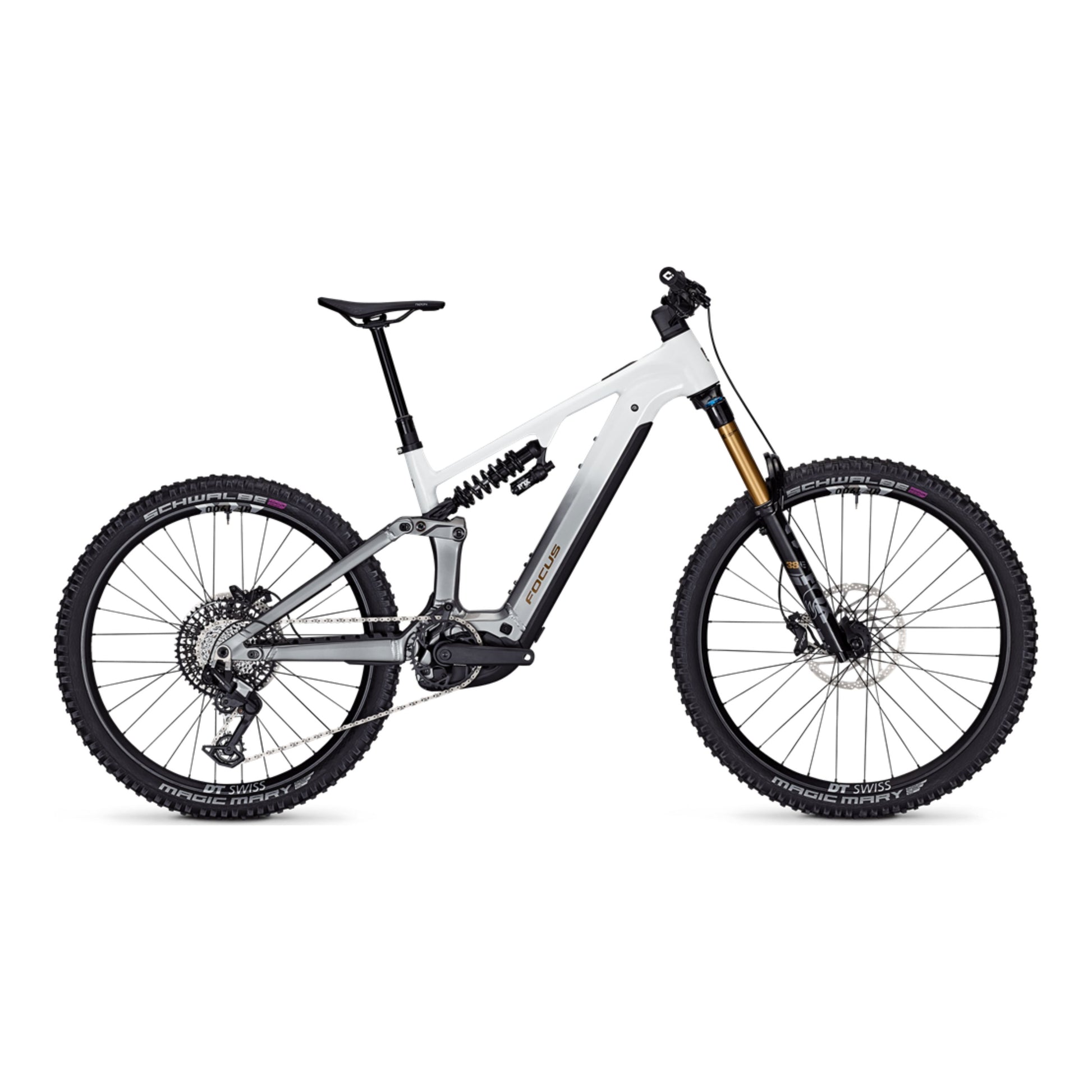

Focus F26 SAM2 6.9

Product Identity

The Focus F26 SAM2 6.9 is an off-road electric mountain bike designed by Focus, engineered for demanding trail riding with high-performance components and Bosch drivetrain technology. It is constructed to provide power, control, and durability in challenging terrains.

Materials

The bike features an aluminium frame for strength and lightweight performance. Components include steel and alloy parts such as the DT Swiss HF1900 wheelset and Fox suspension components, ensuring durability and resilience under strenuous trail conditions.

Dimensions

• Overall weight: 26 kg (with 600 Wh battery)
• Wheel sizes: 29" front, 27.5" rear
• Frame sizes available: Small, Medium, Large, Extra Large
• Handlebar width: 800 mm; rise: 35 mm
• Seatpost length options: 150 mm, 180 mm, 210 mm depending on size
• Tyre dimensions: 29 x 2.4" (front), 27.5 x 2.4" (rear)

Features

• Full suspension with FOX 38 Factory Grip X2 fork featuring 170 mm travel
• Fox DHX Performance coil shock with adjustable spring weights: 350, 400, 500, 600 lbs
• Bosch Performance Line CX motor with 85 NM torque, upgradable to 120 NM via Flow App
• Bosch PowerTube 600 Wh lithium-ion battery for extended riding range
• SRAM Eagle 12-speed drivetrain including Eagle 90 transmission and 10-52T cassette
• TRP EVO Pro 4-piston disc brakes with 220 mm rotors for reliable stopping power
• Schwalbe Magic Marry Super DH tyres with Addix Ultra Soft compound for enhanced grip and traction
• System display and remote controls include Bosch Mini Remote and System Controller for ride monitoring

Use Cases

The Focus F26 SAM2 6.9 is ideal for off-road riders engaging in challenging trail riding, enduro, and mountain biking adventures that require high power and precise control. It caters to riders on a budget seeking a value-packed e-bike capable of handling tough terrains without compromising performance. This e-bike is suited for experienced mountain bikers looking for a durable, powerful machine for steep descents and technical trails, as well as budget-conscious enthusiasts wanting an advanced off-road e-bike at a competitive price point.

Included

• Focus F26 SAM2 6.9 e-bike assembled in original packaging
• Bosch PowerTube 600 Wh battery installed
• Fox 38 Factory fork and Fox DHX Performance coil shock
• SRAM Eagle 12-speed groupset and DT Swiss HF1900 wheels
• TRP EVO Pro disc brakes with rotors
• Schwalbe Magic Marry tyres
• System display and remote controls

Care

The Focus F26 SAM2 6.9 requires routine cleaning with water and mild soap, avoiding high-pressure washers. The Bosch battery benefits from regular charging after rides and storage in a temperature-controlled environment. The suspension components should be checked and serviced per manufacturer recommendations, and brake pads replaced as needed. The bike includes a standard manufacturer warranty covering parts and frame defects. Maintenance and repairs should be performed by authorized service centers familiar with Bosch e-bike systems and high-performance mountain bike components.
