NCM T3S Step-Thru Electric Bike, 500W E-Bike Motor, 48V 12Ah 576Wh Battery

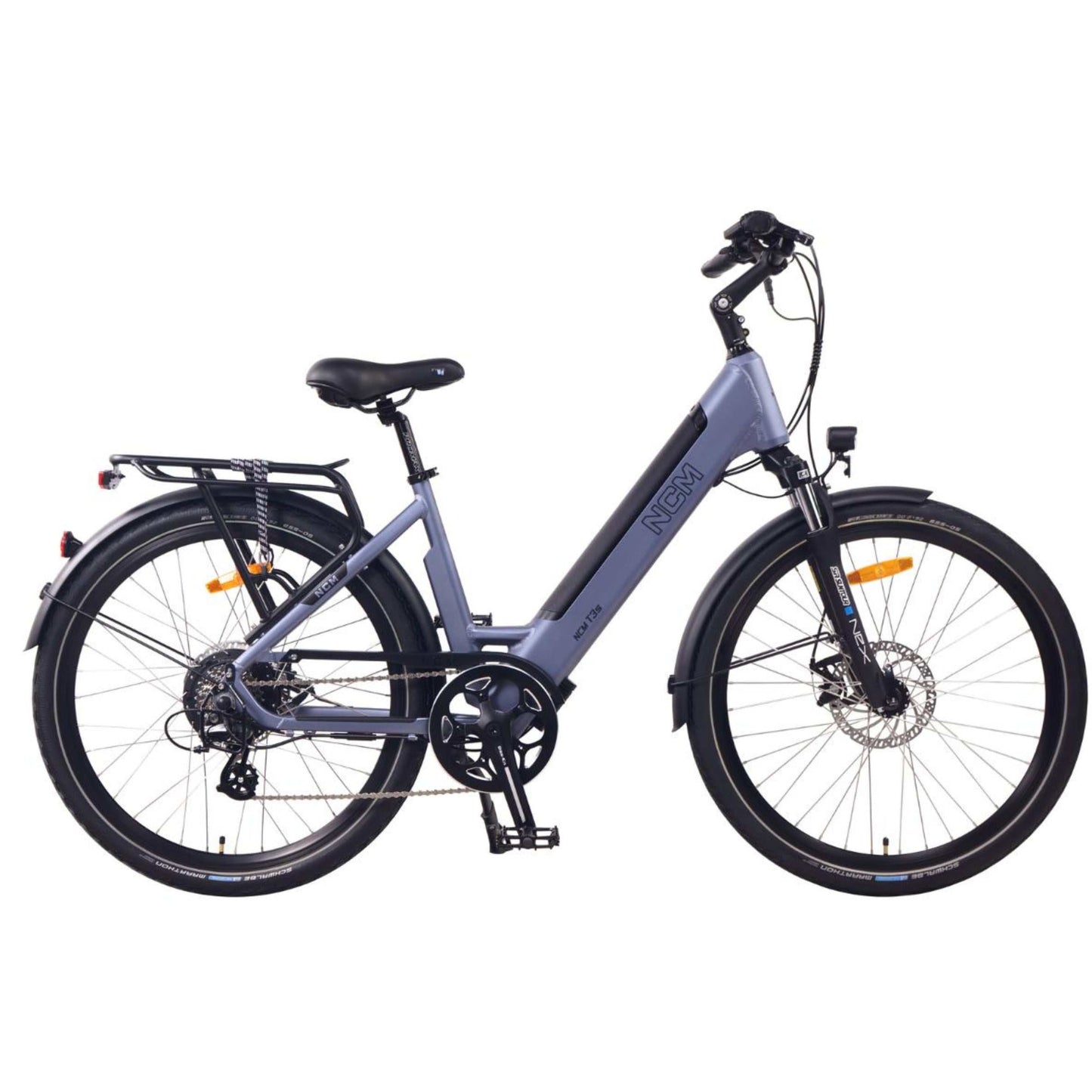

Introduction to the NCM T3S Step-Thru Electric Bike

The NCM T3S Step-Thru Electric Bike is an urban-focused e-bike designed for comfortable city commuting and light trekking. It features a 500W motor and a 48V 12Ah (576Wh) battery, providing reliable power and extended riding range. The bike's step-thru frame offers easy mounting and dismounting, making it suitable for riders of all ages and abilities.

This model integrates durable materials, including an aluminum 6061 frame, and components engineered for long-lasting performance. It is equipped with a Tektro mechanical disc braking system and a SUNTOUR NEX suspension fork, ensuring dependable stopping power and smooth handling on varied urban terrain. The bike's design emphasizes ergonomic features such as adjustable handlebars, ergonomic grips, and a gel-padded saddle for rider comfort during extended use.

Dimensions and Components

• Frame size: 457/480 mm aluminum 6061
• Bike weight: 27 kg
• Tyre size: Schwalbe Marathon, 26×1.75/28×1.5
• Range: Up to 120 km per charge under optimal conditions
• Battery capacity: 576Wh, removable for convenient charging

The motor, Das-Kit X15, delivers a top speed of 25 km/h. The bike features a Shimano Altus M310 7-speed gear set with rear derailleur, allowing versatile riding modes. The LCD Das-Kit L7 display provides controls and ride data. The front light and rear rack are integrated for safety and storage, supported by a Shimano B087 pedal system and Wellgo pedals.

Features and Use Cases

• High-output 48V motor providing 500W power
• Removable 576Wh battery enabling up to 120 km range per charge
• Step-thru frame for easy access, suitable for riders with limited mobility or cycling experience
• Ergonomic grips and adjustable handlebars for customized comfort
• Reliable safety features including Tektro mechanical disc brakes and suspension fork
• Ideal for city commuters seeking a budget-friendly, long-range electric bike
• Perfect for light off-road riding, such as gravel paths or light trails

Included in the Package

• NCM T3S Step-Thru Electric Bike
• Removable battery
• Charger (Das-Kit, 48V 2A)
• Front light and rear rack (pre-installed)
• Owner's manual and tools for assembly and maintenance

Care Instructions and Warranty

Regular cleaning with a damp cloth and periodic inspection of the brakes and tires are recommended for maintenance. The battery should be charged regularly and stored in a cool, dry place when not in use for extended periods. The NCM T3S electric bike comes with a manufacturer warranty covering manufacturing defects; specific warranty durations and terms should be verified with the seller or warranty card included.
