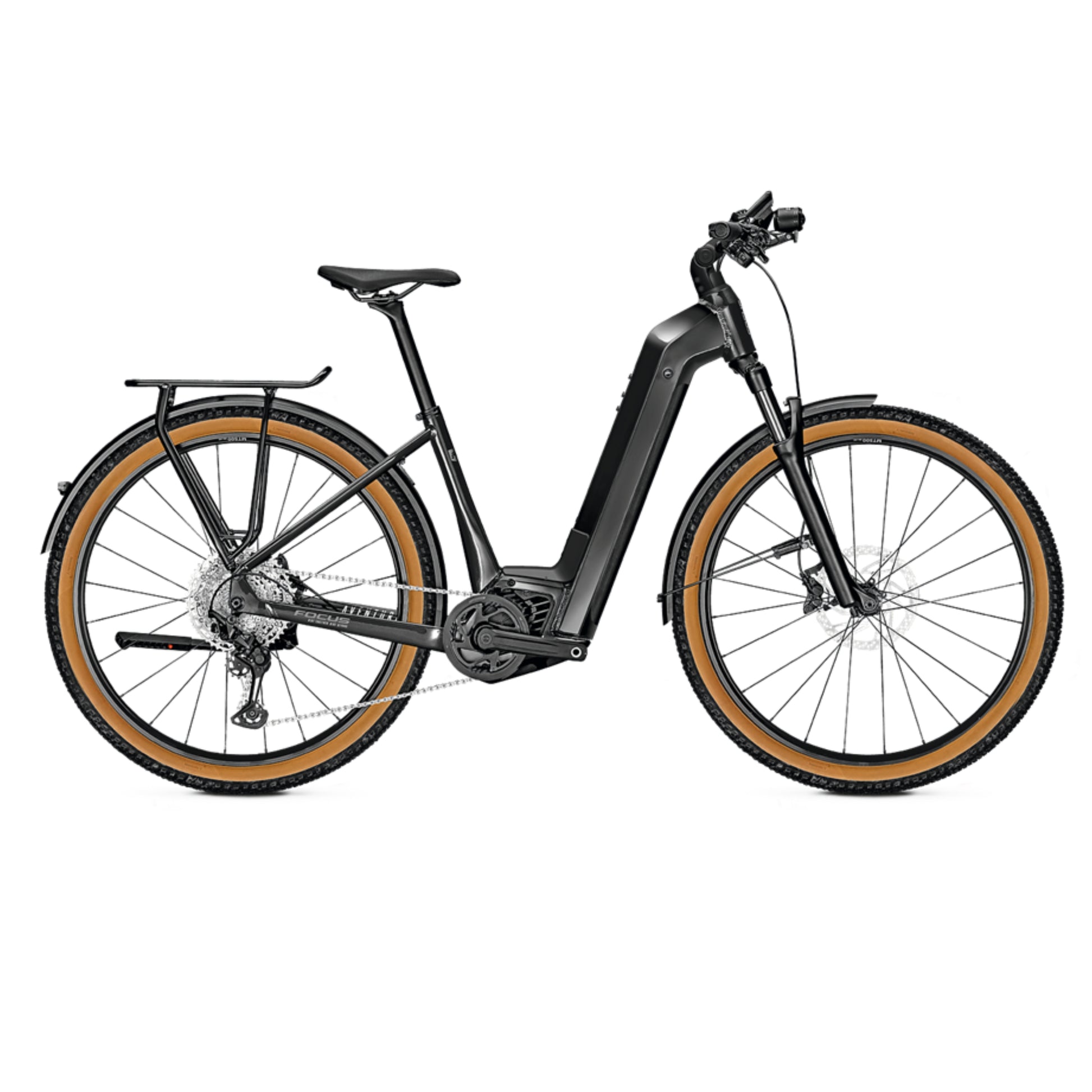

Focus F24 AVENTURA2 6.7 Wave

Customisable Bosch Smart System with Performance CX e-drive, Intuvia display and 625 Wh battery

Robust metal mudguards, pannier rack, stand and proper 70 Lux lighting system

Comfortable cockpit with C.I.S. stem with integrated cable routing, plus reliable Shimano Deore 10-speed shifting

Bosch CX e-drive & 625 Wh battery

Fenders, pannier rack, stand and 70 Lux light

Comfortable C.I.S. cockpit & Shimano Deore 10-speed

SPECIFICATION

FRAME MATERIAL

Aluminium

FRAME

7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, post mount 180 mm,7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, USB-C port, post mount 180 mm

FORK

SR Suntour XCR 34 LO Coil, 15x110 mm

TRAVEL OF SUSPENSION FORK

100 mm

MOTOR

Bosch Performance CX Gen4, 85 Nm, 250 W

BATTERY WATT-HOURS

625 Wh

BATTERY AMPERE HOURS

17,4 Ah

DISPLAY

Bosch LED Remote + Intuvia 100

SHIFTER

Shimano Deore M4100, 10-speed

REAR DERAILLEUR

Shimano Deore M4120, 10-speed

SPROCKET

Shimano Deore M4100, 10-speed

CHAIN

KMC X10, 10-speed

CRANKSET

FSA CK-320, aluminium

TRANSMISSION OF DRIVE

front: 36, rear: 11-42

BOTTOM BRACKET

Integrated in Drive Unit

HANDLEBAR

Aluminium, 760 mm, flatbar, backsweep: 9°, 35,0 mm

STEM

FOCUS C.I.S. integrated, 60 mm, 30°, 35 mm, aluminium

HEADSET

ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated

SADDLE

Selle Royal HRN 4007

SEATPOST

Aluminium, 31.6 mm

BRAKE CALIPER

Shimano MT200, 2-piston, hydraulic disc brake

BRAKE LEVER

Shimano MT200

BRAKE

Disc

RIMS

RODI TRYP25, 25-622

REAR HUB

Shimano Alivio MT400, 12x148 mm

FRONT HUB

Shimano Alivio MT400, 15x110 mm

TIRES

Schwalbe Smart Sam 2.25, 57-622

FENDER

Eurofender Duo plastic, 65 mm, with edge protector

HEADLIGHT

Litemove SE90 LED, 90 Lux

TAILLIGHT

TRELOCK LS421, Brake light

GEARS

10

BIKE WEIGHT INCL. BATTERY IN KG.

25,2

SIZE

40,48,44,52
