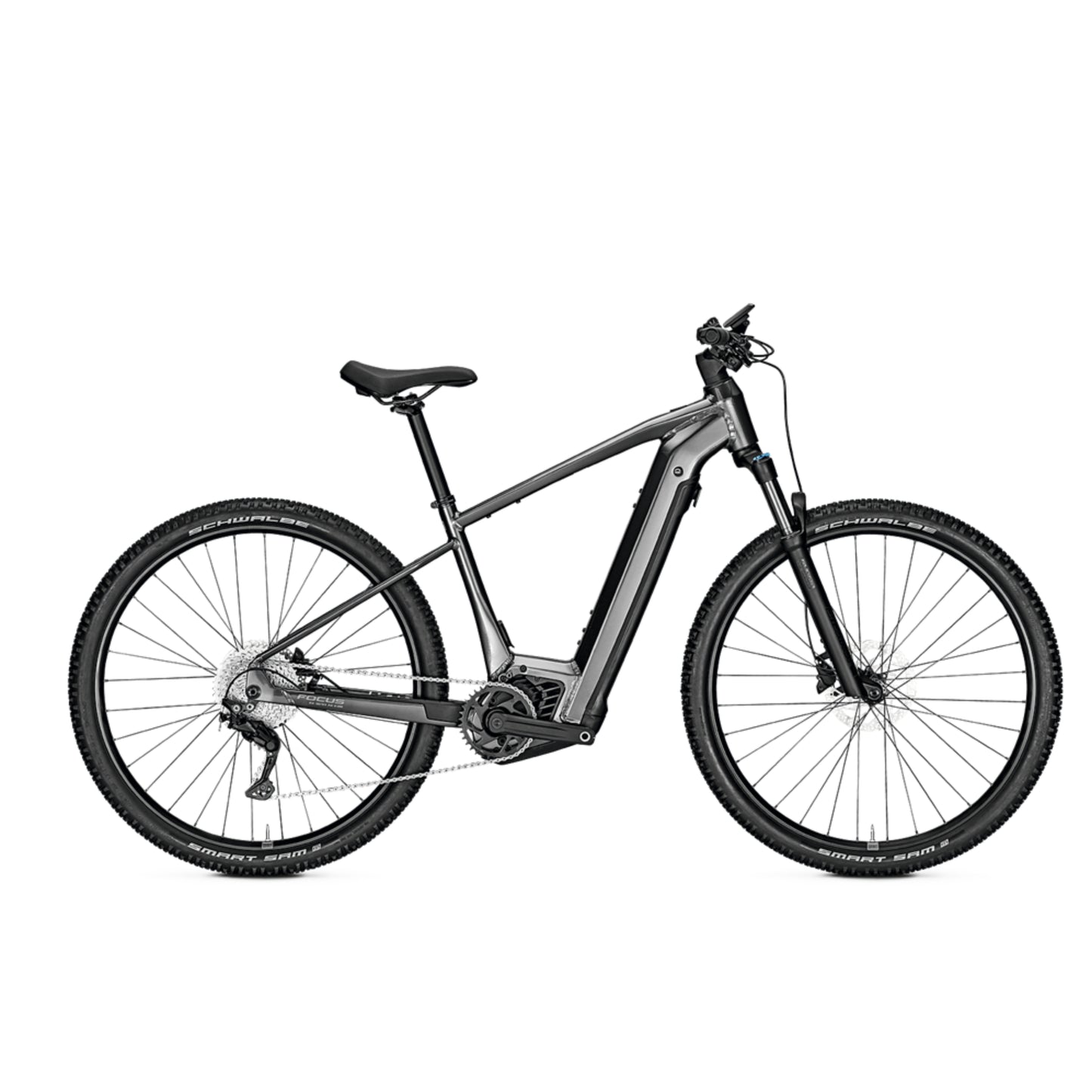

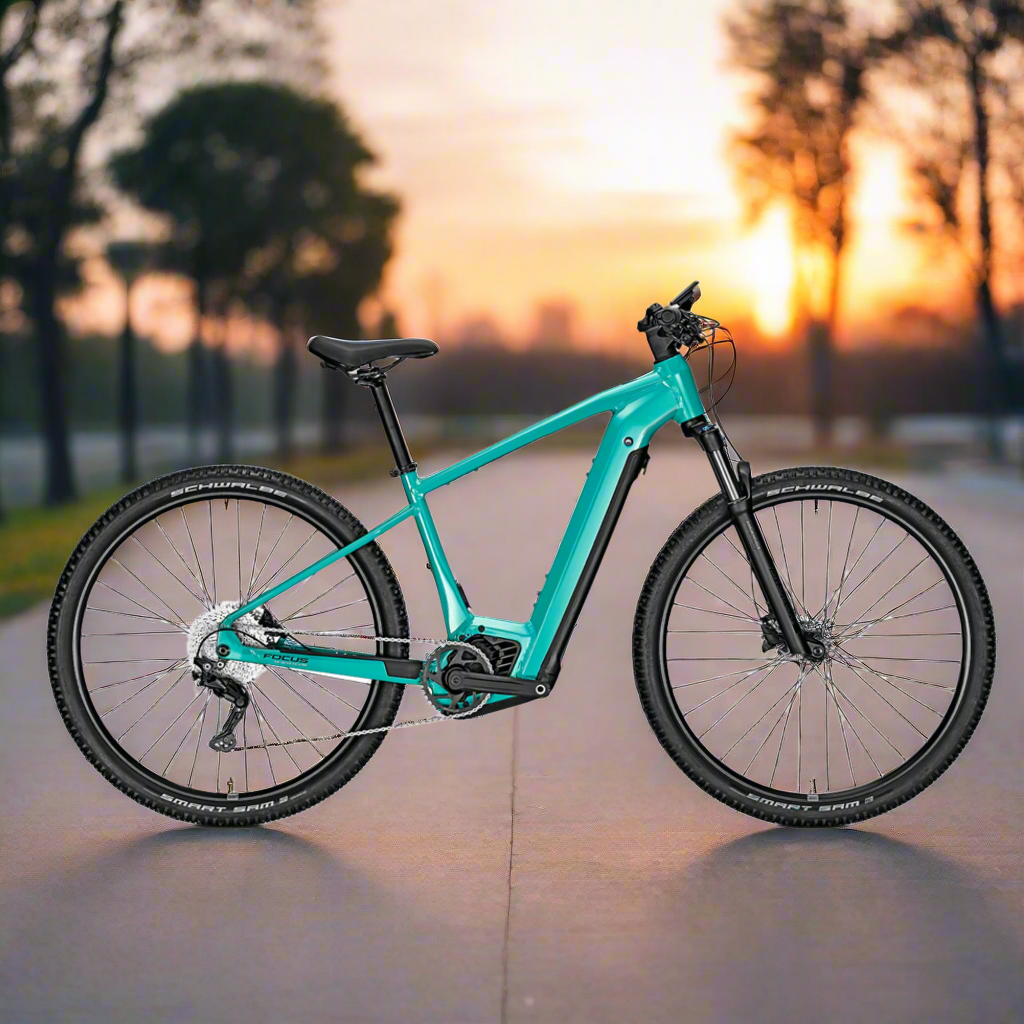

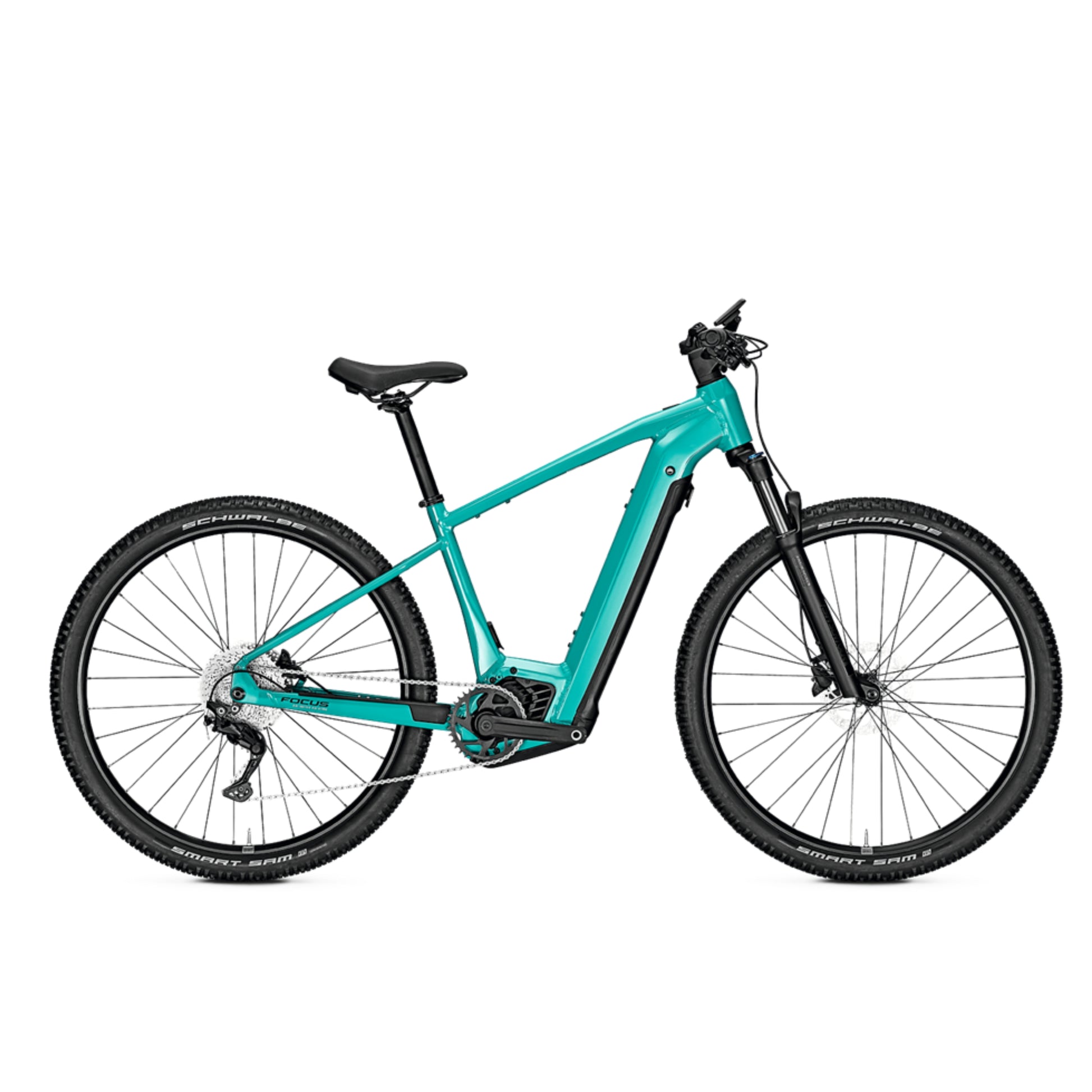

Focus F24 JARIFA2 6.7

Customisable Bosch Smart System with Performance CX e-drive, Intuvia display and 625 Wh battery

Offroad-ready mountain bike geometry with 29" wheels (size XS: 27,5") and Shimano Deore 10-speed shifting

Comfortable cockpit and C.I.S. stem with integrated cable routing,

Bosch CX e-drive & 625 Wh battery

29" wheels (size XS: 27,5") & Shimano Deore 10-speed

Comfortable cockpit with C.I.S. stem

• Brake
  • 180
• Pedal
  • MTB, with reflector
• Frame size
  • XS,S,M,L,XL
  • 36,40,44,48,52
• Drive train
  • Chain
• Max total weight
  • 150 kg
• Frame
  • 7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, post mount 180 mm
• Fork
  • SR Suntour XCR 34 LO Coil, 15x110 mm
• Handlebar
  • Aluminium, 760 mm, flatbar, backsweep: 9°, 35,0 mm
• Saddle
  • Selle Royal HRN 4007
• Seat post
  • Aluminium, 31.6 mm
• Stem
  • FOCUS C.I.S. integrated, 60 mm, 30°, 35 mm, aluminium
• Brakes
  • Shimano MT200, 2-piston, hydraulic disc brake
• Crank set
  • FSA CK-320, aluminium
• Sprocket
  • Shimano Deore M4100, 10-speed
• Transmission
  • front: 36, rear: 11-42
• Wheel rims
  • RODI TRYP25, 25-622
• Brake lever
  • Shimano MT200
• Battery
  • Bosch Powertube, 625 Wh, removeable, lockable
  • 625 Wh
• Display
  • Bosch LED Remote + Intuvia 100
• Motor
  • Bosch Performance CX Gen4, 85 Nm, 250 W
• Color
  • Diamond Black
  • bluegreen glossy
• Travel
  • 100 mm
• Hub
  • Shimano Alivio MT400, 15x110 mm
  • Shimano Alivio MT400, 12x148 mm
• Grip
  • Herrmans Click
• Rear derailleur
  • Shimano Deore M4120, 10-speed
• Tire
  • Schwalbe Smart Sam, 57-584,Schwalbe Smart Sam 2.25, 57-622
• Bottom bracket
  • Integrated in Drive Unit
• Shift/brake lever
  • Shimano MT200
  • Shimano Deore M4100, 10-speed
• Spoke
  • Zink, black
• Chain
  • KMC X10, 10-speed
