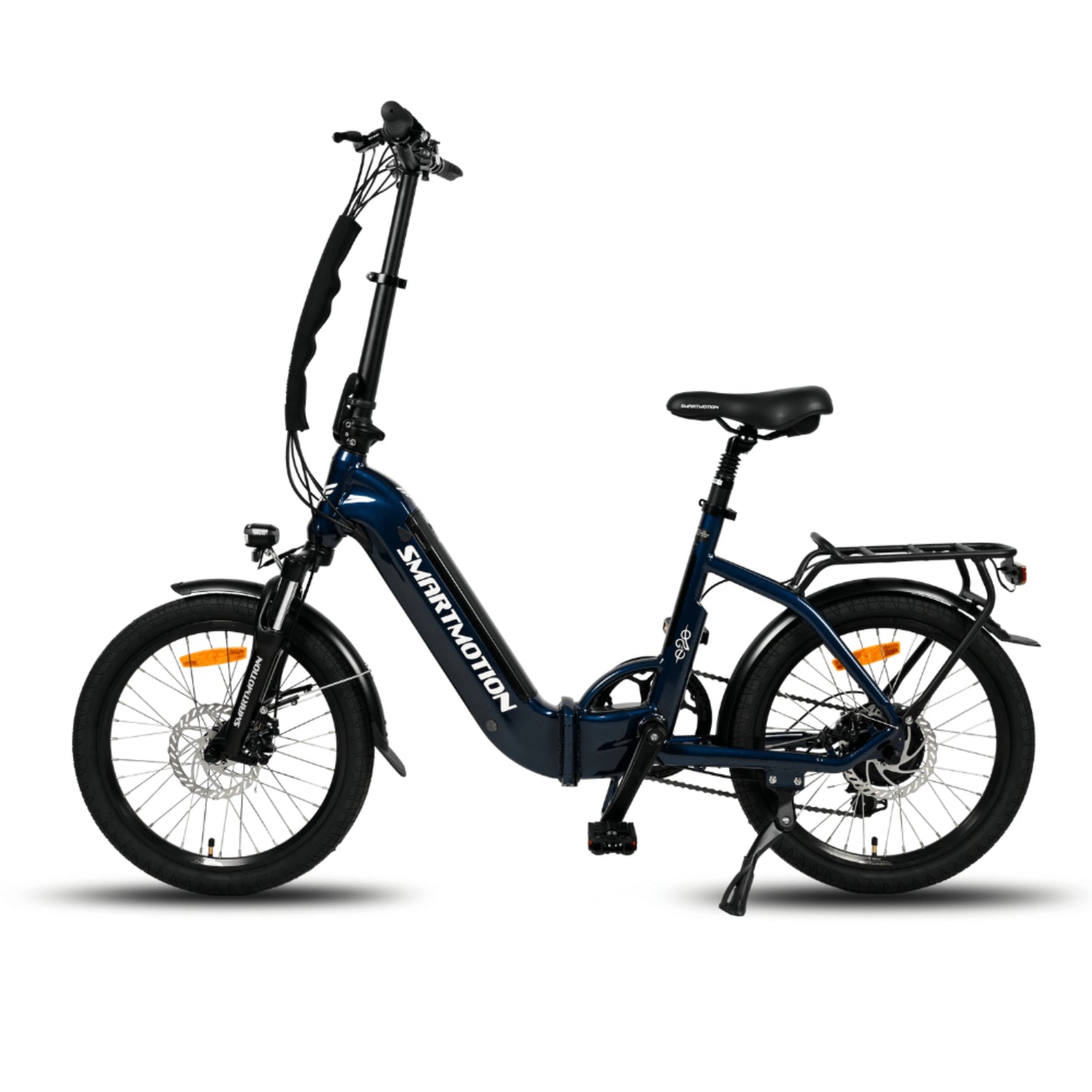

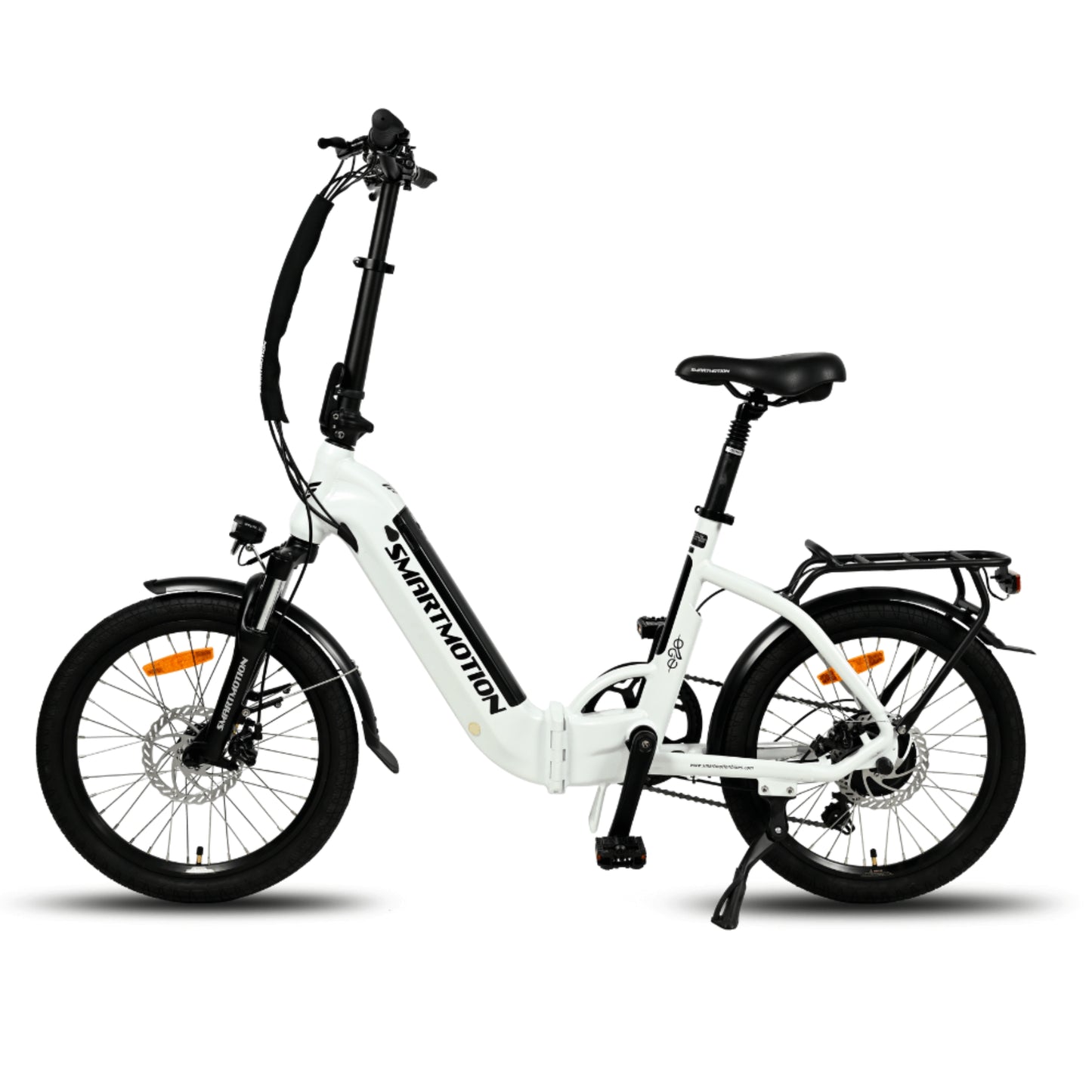

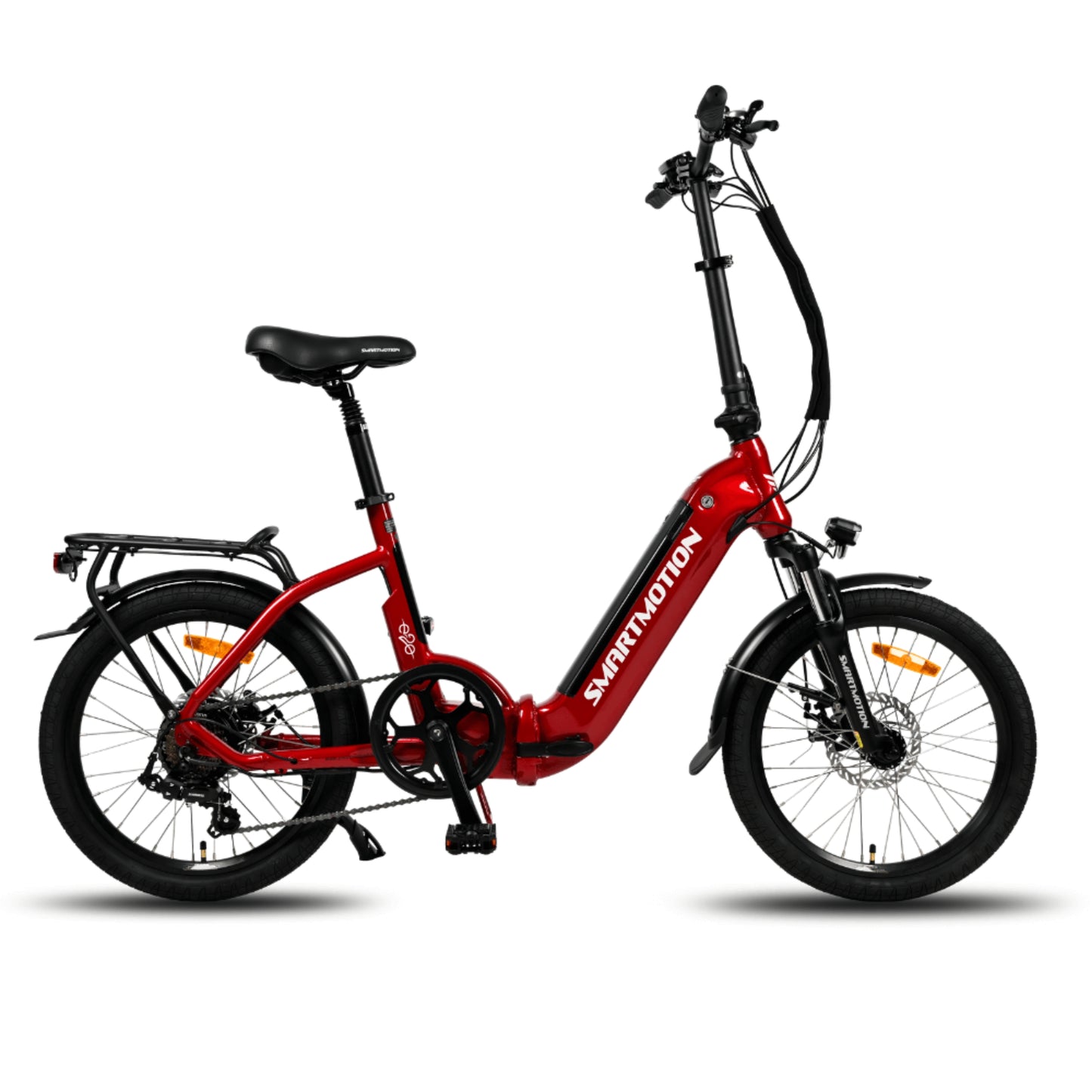

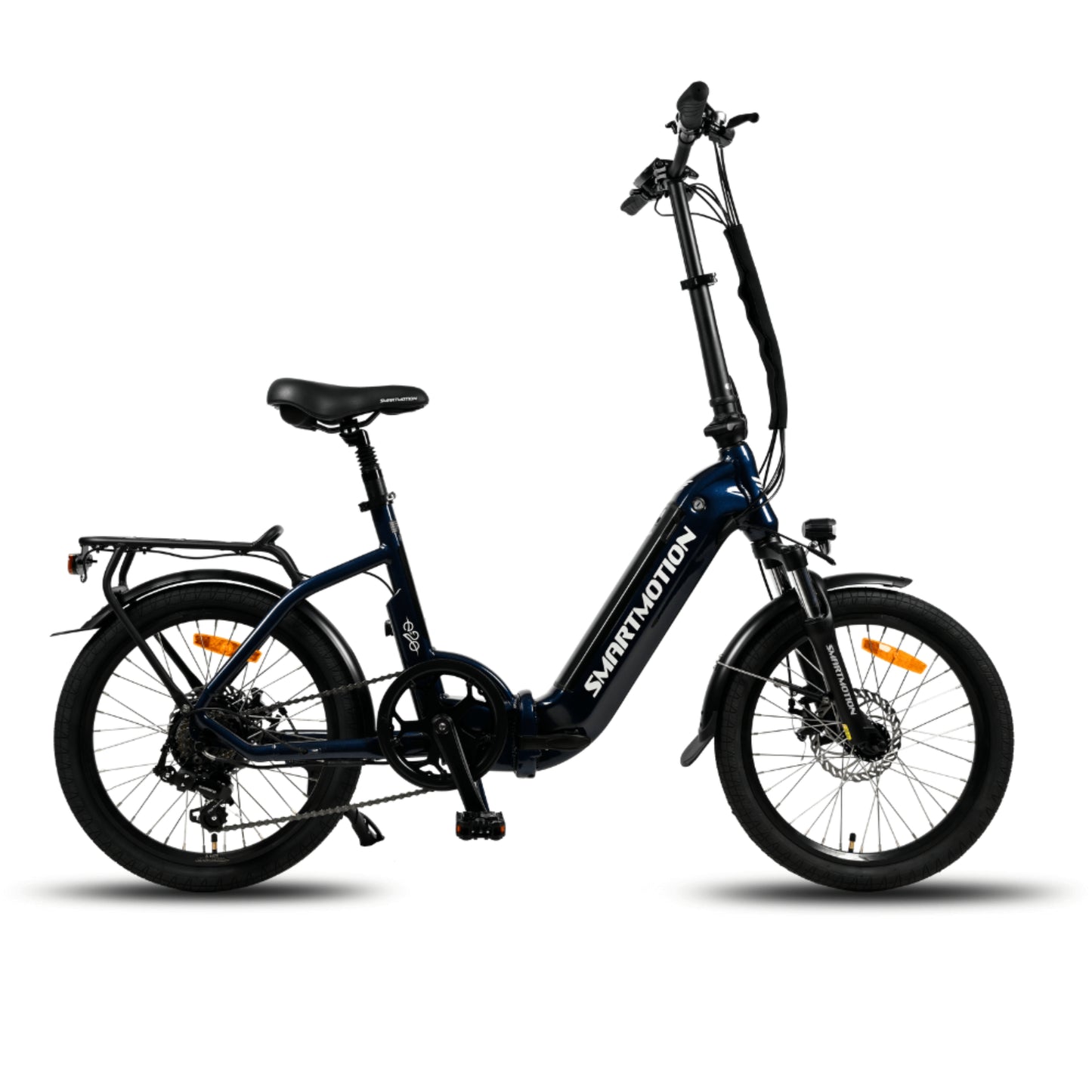

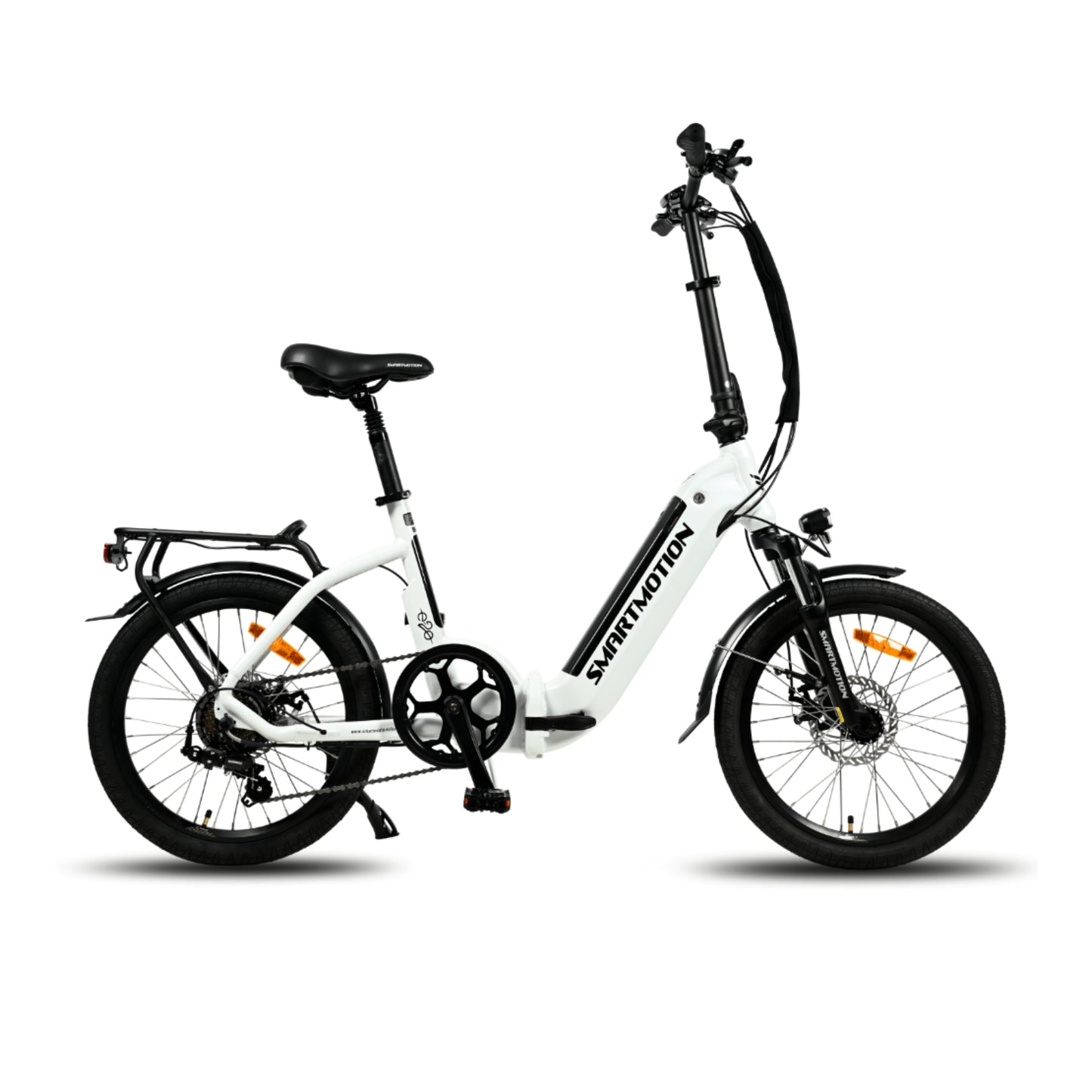

Smartmotion E20 Step Thru Folding e-Bike with Suspension
Smartmotion E20 Step Thru Folding e-Bike with Suspension
Couldn't load pickup availability
Smartmotion E20 Step Thru Folding e-Bike with Suspension: Your Perfect City Companion
The Smartmotion E20 Step Thru Folding e-Bike with Suspension is designed for city explorers who crave comfort, convenience, and style. Whether you’re commuting to work or enjoying a weekend adventure, this e-bike makes every ride a breeze. Featuring a robust 36V 12.8Ah Panasonic lithium-ion battery, you can enjoy up to 50 km of seamless riding. The upgraded hydraulic brakes ensure a smooth, responsive ride while the plush seat and adjustable handlebars provide maximum comfort.
Key Features:
- Smooth & Comfortable Ride: Aluminium suspension fork with 80mm travel and hydraulic brakes ensure a smooth, bump-free ride across the city.
- Effortless Control: The high-torque 250W brushless motor with pedal assist provides smooth acceleration and effortless pedaling.
- Compact & Convenient Storage: Sturdy, foldable aluminium frame with foldable pedals and a centre-mounted kickstand for easy storage and transportation.
- Durable & Stylish: 20" x 1.95" tires with durable aluminium double-walled rims, integrated front and rear lights, and polypropylene mudguards for easy maintenance.
- Whether you're navigating crowded streets or gliding through scenic parks, the Smartmotion E20 Step Thru Folding e-Bike with Suspension is your ultimate partner for urban exploration.
Quick Features:
- Upgraded Hydraulic Brakes for superior stopping power
- Panasonic 36V 12.8Ah Battery offering up to 50km range
- 7-Speed Shimano Derailleur for versatility on various terrains
- Compact, Foldable Design for easy storage and transport
- Integrated Front & Rear Lights for added safety
- Heavy-Duty Rear Rack with an elastic strap for carrying essentials
People Also Ask:
1. What is the range of the Smartmotion E20 e-bike?
The Smartmotion E20 offers a range of up to 50 km on a full charge, making it ideal for city commuting.
2. How long does the battery take to charge?
The battery typically takes around 4-6 hours to fully charge, depending on the charger and conditions.
3. What is the maximum rider weight capacity for the Smartmotion E20?
The maximum rider weight capacity for the Smartmotion E20 is 120 kg, ensuring a stable and secure ride.
4. Can I ride this e-bike in the rain?
Yes, the Smartmotion E20 features marine-rated cables and polypropylene mudguards, making it well-suited for wet conditions. However, it's always best to dry off after exposure to heavy rain.
SPECIFICATIONS
|
FRONT HUB: Aluminium Quick Release |
FRAME: Aluminium folding frame and foldable pedals. Centre-mounted adjustable kickstand |
SPOKES: 36 Silver Stainless Steel |

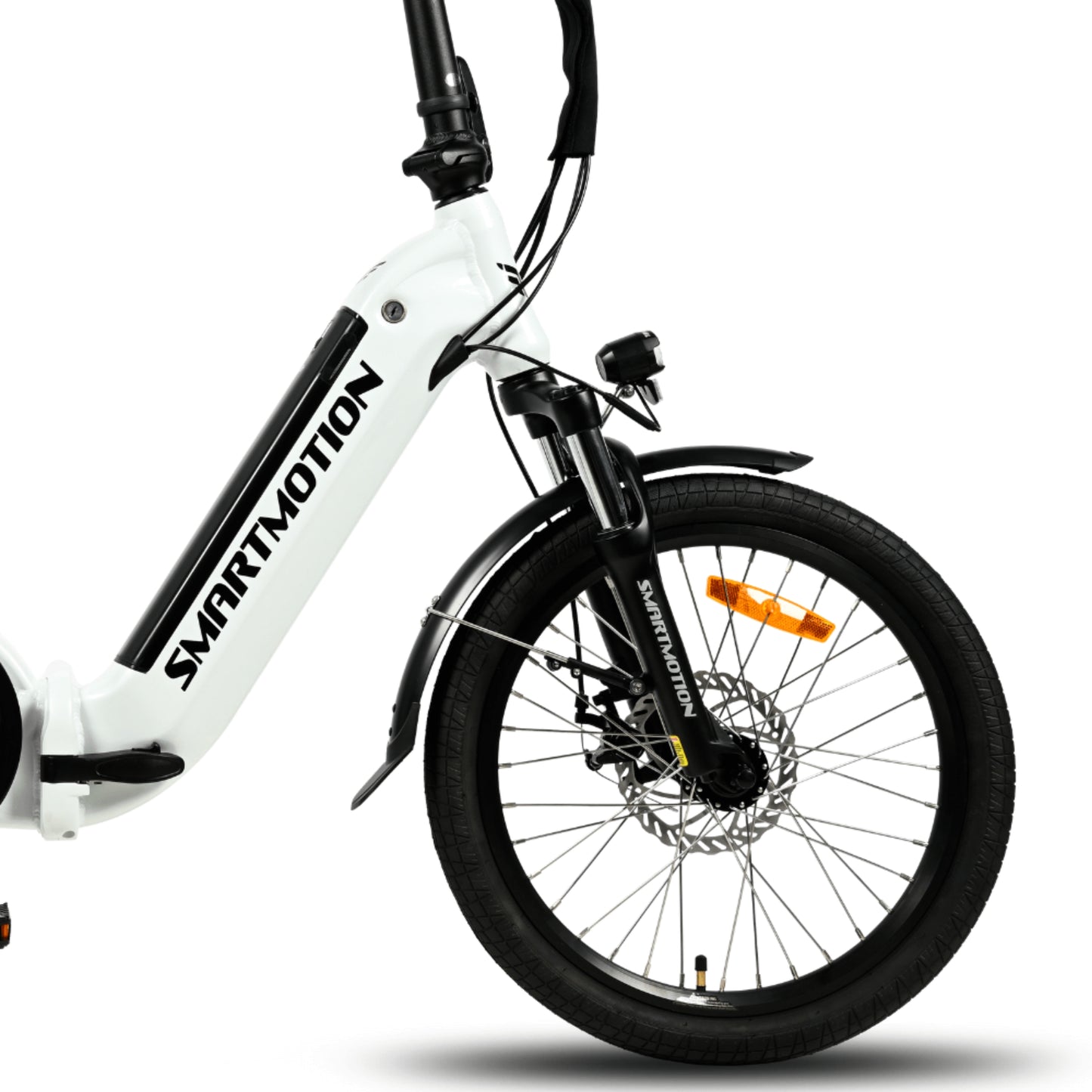

FORK: Aluminium Suspension Fork with 80mm Travel - disc brake mount |
RIM: Aluminium double walled rims |
HEAD SET: Sealed Bearing |
TYRE: 20” X 1.95 |
HANDLE BAR: Height adjustable folding handle bars for relaxed, upright ride posture. |
DERAILLEUR: 7 speed Compact Shimano |
SADDLE: Smartmotion Comfortable Seat |
MOTOR: High Torque Brushless with Freewheel 250w |
SEAT POST: Alumiunium Suspension 33.9mm |
SENSOR: Pedal Assist Sensor |
BRAKE: Front and Rear Hydraulic brakes |
DISPLAY: LCD console with 5 level Pedal assist. Adjustable max speed |
CHAINWHEEL: 48T Chainring, 162mm Crank Arms |
TOP SPEED: capped at 25km/h |
CHAIN: 7 speed |
RANGE: Up to 50km |
CASSETTE: 7 speed Freewheel |
MAX LOAD: 100kg |

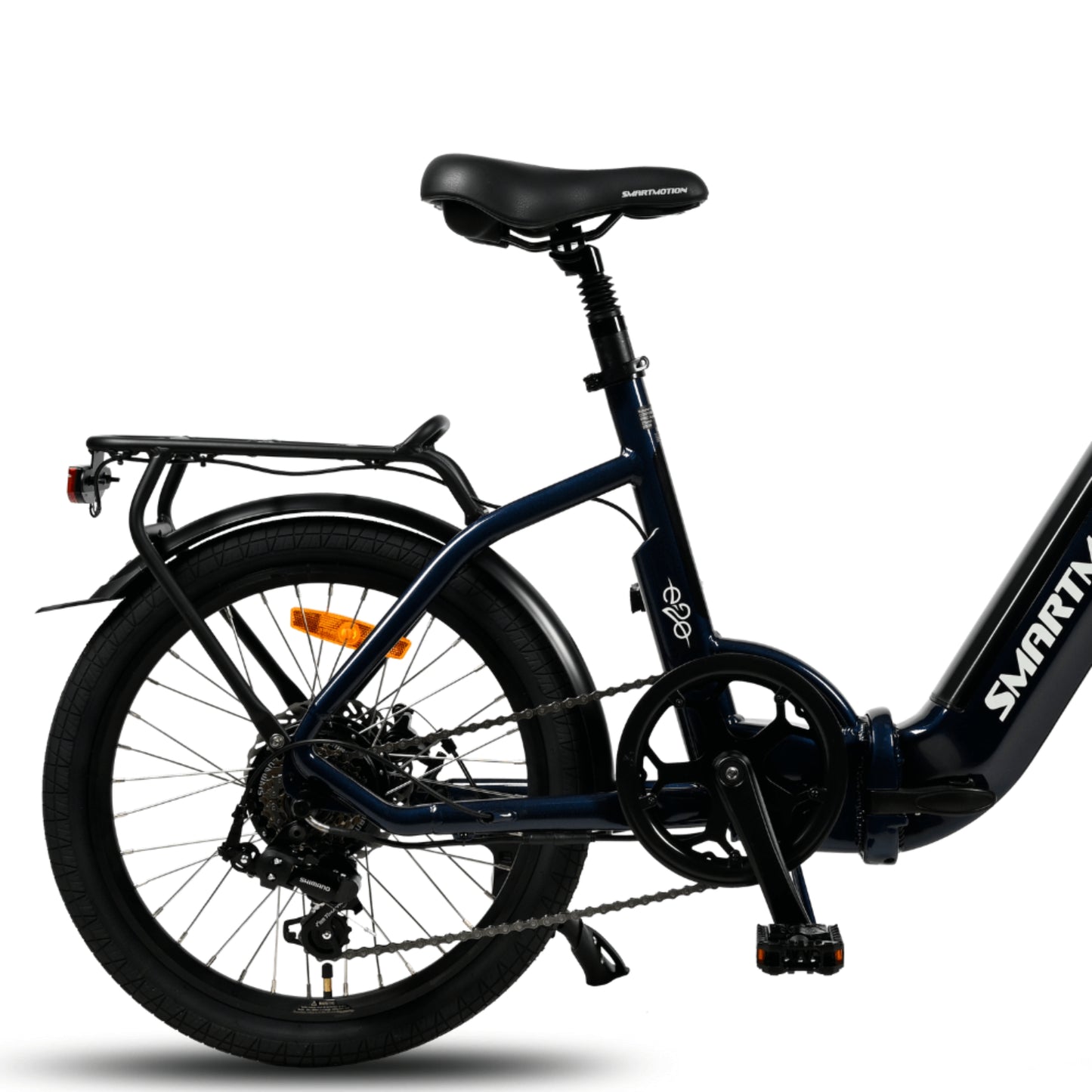

RACK: Heavy duty rear battery rack, with elastic strap for luggage |
LIGHT: Integrated front and rear light system, powered from the main battery |
GEARS: 7 speed freewheel 13-32 gear set, with derailleur & shifter |
CABLES: Marine-rated cable plugs on all components for simple and quick servicing/replacement |
MUD GUARD: Polypropylene guards with heavy-duty stays |
DIMENSIONS: 100cm L x 65cm H x 45cm W (folded) |
*** Please note: All parts are subject to change based on availability and can be different between Manufacturing schedules
Service and Warranty: 2 years warranty on battery and motor, 3 years on frame, 12 months other parts.
